Drawings
If you want to build a 1934 Nimbus in
original condition from scratch, it will be inevitable that some
parts cannot be found or that other parts are in such a deplorable
condition that they cannot be used, so that you will be forced to
replicate them.
Please find below drawings of some parts
that are often missing in a 1934 project.
I hope they will be useful for you.

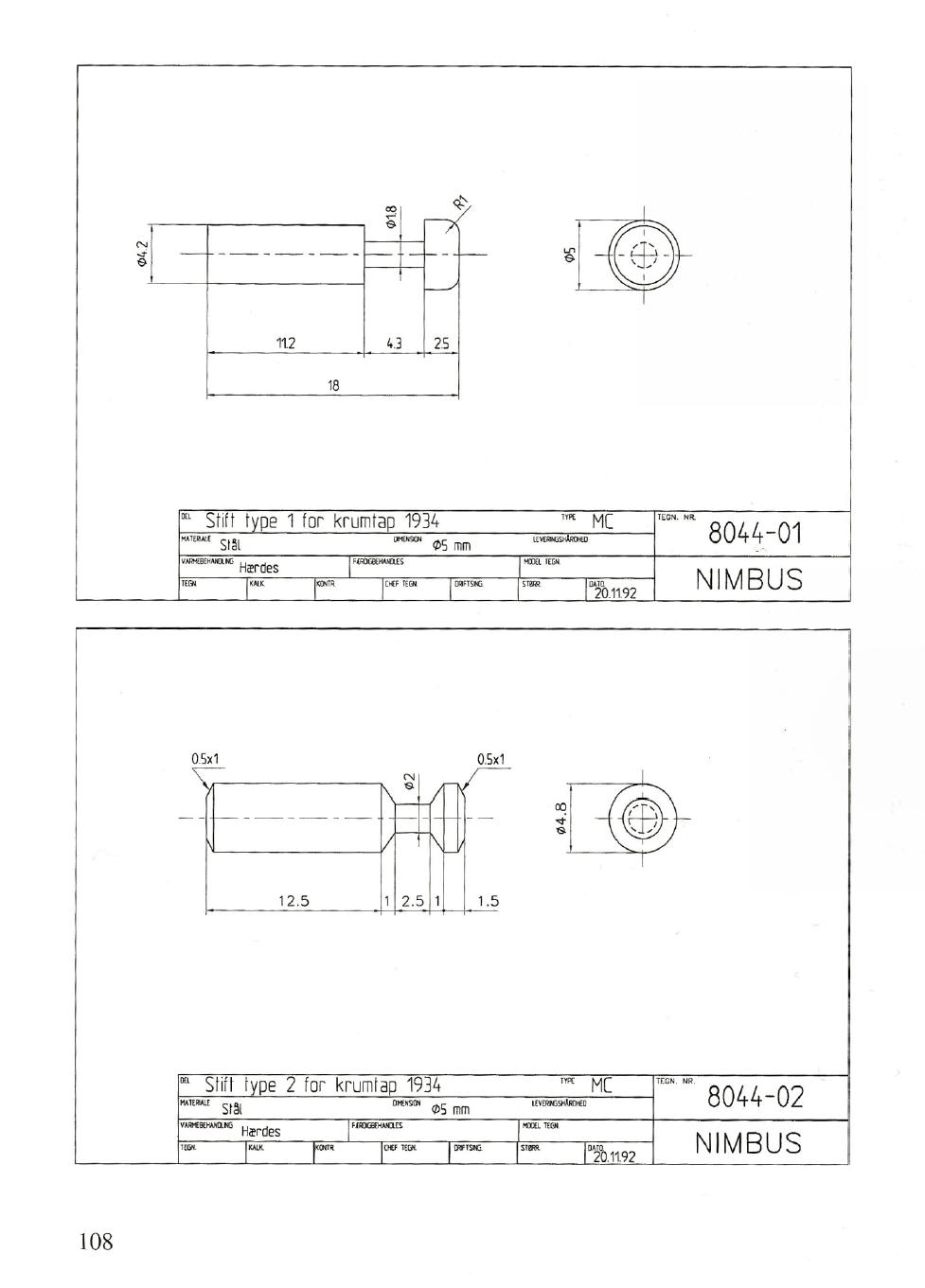

107.
|
|
|
|
[Translation of page 108]
[Upper section]
|
PART |
TYPE |
DRW. NO. |
|
Pin type 1 for
1934 crankshaft |
MC |
8044-01 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
Steel |
Ø 5 MM |
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
Hardened |
|
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
11.20.92 |
[Lower section]
|
PART |
TYPE |
DRW. NO. |
|
Pin type 2 for
1934 crankshaft |
MC |
8044-02 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
Steel |
Ø 5 MM |
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
Hardened |
|
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
11.20.92 |
108.
[End of translation of page 108]
|
|
|
|

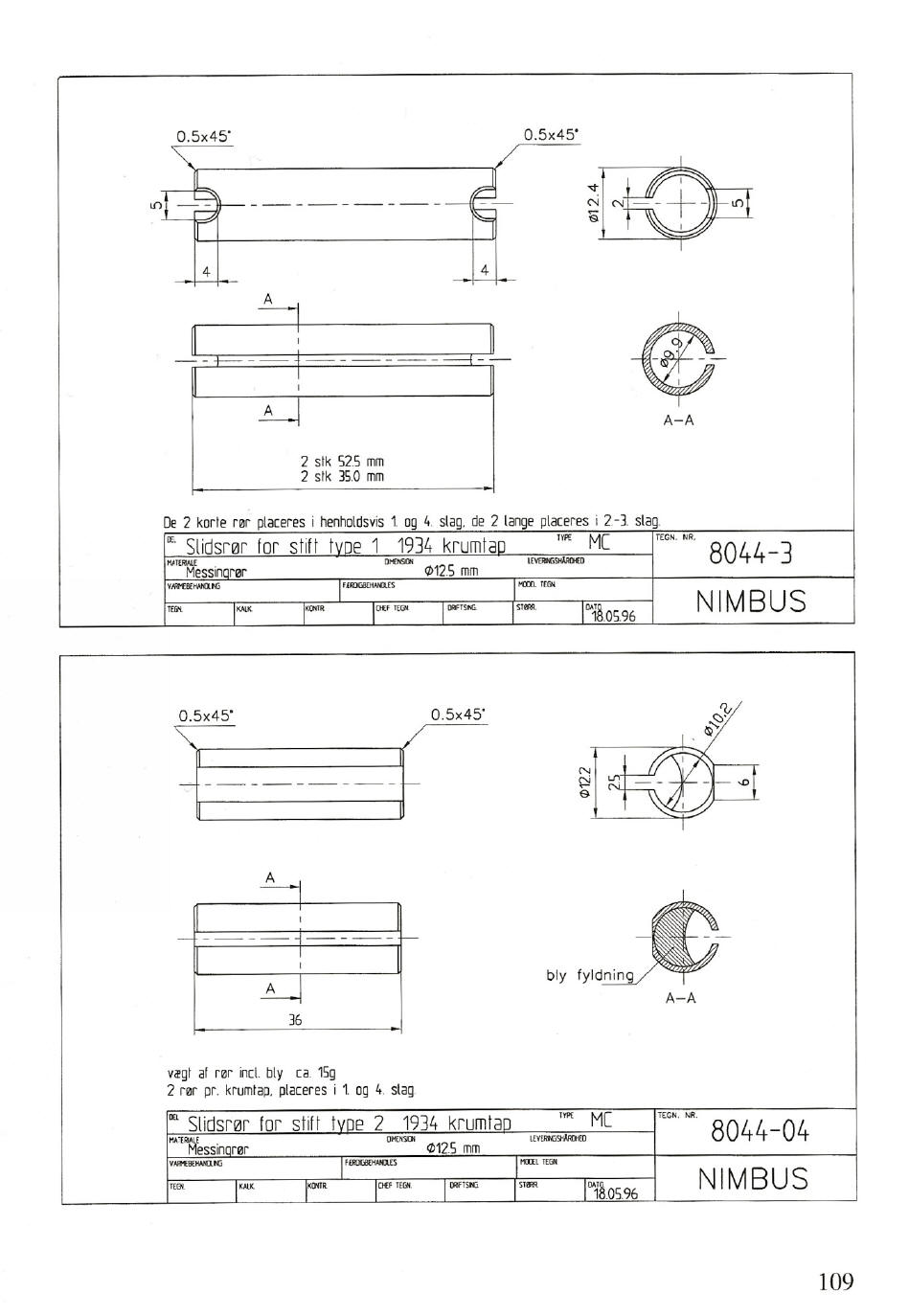

[Translation of page 109]
[upper
section]
2 PC. 525 mm
2 PC. 350 mm
The
two short tubes fit into the 1st and 4th crank respectively, the two
longer ones in the 2nd and 3rd crank.
|
PART |
TYPE |
DRW. NO. |
|
Split tube for pin
type 1 for 1934 crankshaft |
MC |
8044-03 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
Brass tube |
Ø 12.5 MM |
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
|
|
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
05.18.96 |
[Lower section]
Filled with lead
weight of tube including lead appr. 15 g
2 tubes per crankshaft, placed in 1st
and 4th crank.
|
PART |
TYPE |
DRW. NO. |
|
Split tube for pin
type 2 for 1934 crankshaft |
MC |
8044-04 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
Brass tube |
Ø 12.5 MM |
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
Hardened |
|
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
05.18.96 |
109.
[End of translation of page 109]
|
|
|
|

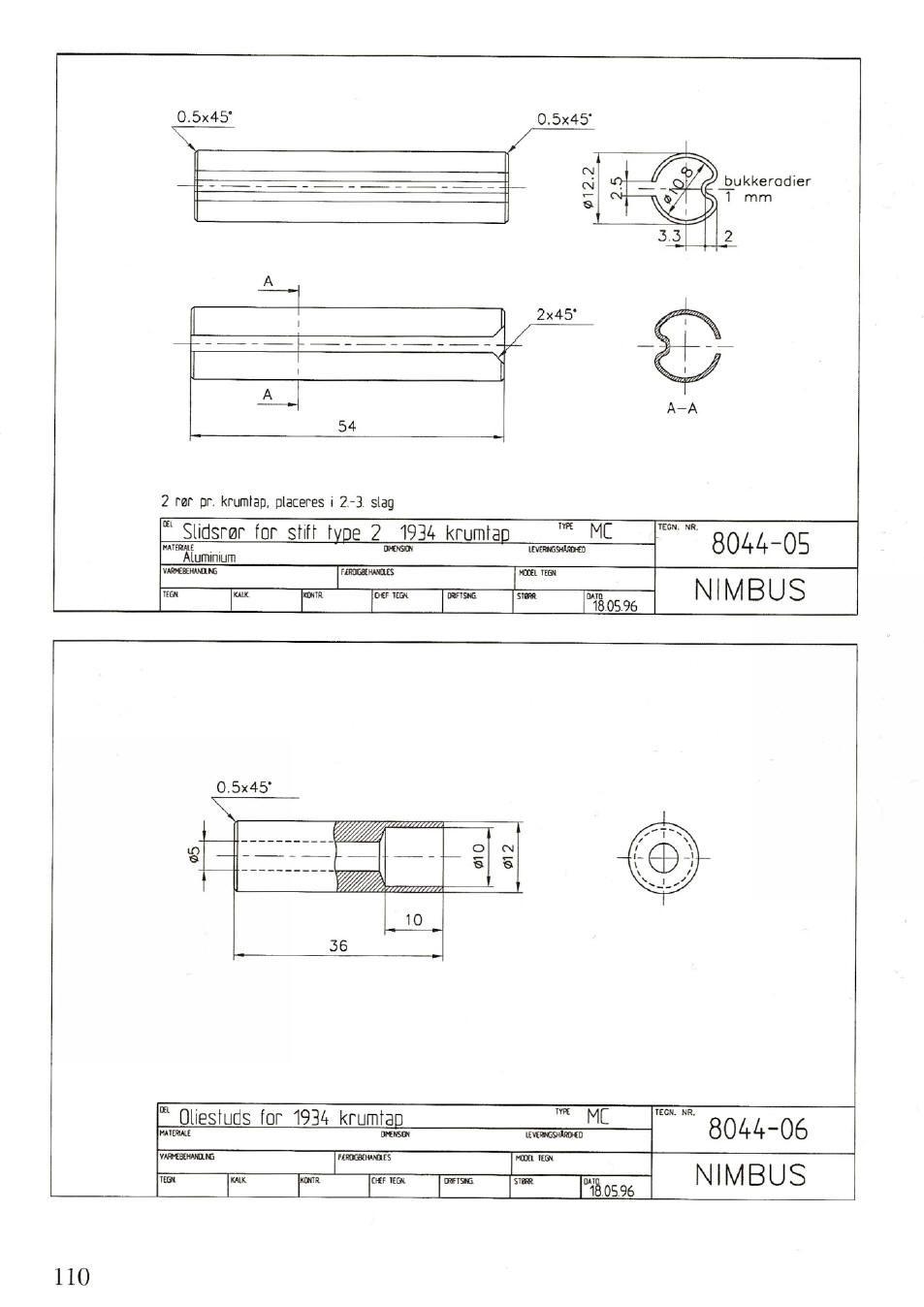

[Translation of page 110]
[Upper section]
Bending radius 1 mm
2 tubes per crankshaft, placed in
the 2nd and 3rd crank.
|
PART |
TYPE |
DRW. NO. |
|
Split tube for pin
type 2 for 1934 crankshaft |
MC |
8044-05 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
Aluminium |
|
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
|
|
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
05.18.96 |
[Lower section]
|
PART |
TYPE |
DRW. NO. |
|
Lube oil stud for
1934 crankshaft |
MC |
8044-06 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
|
|
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
|
|
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
05.18.96 |
110.
[End of translation of page 110]
|
|
|
|

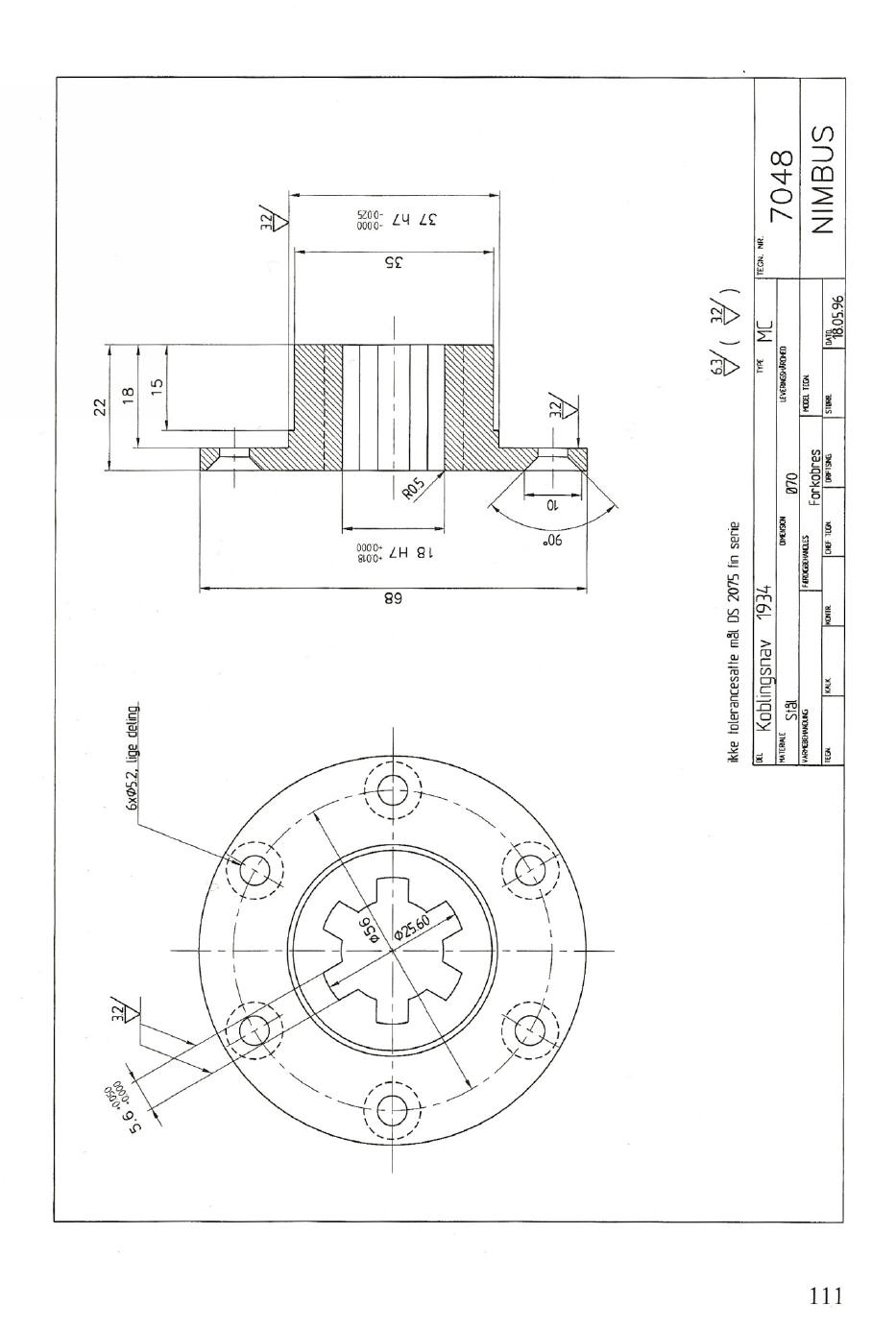

[Translation of page 111]
6xØ 5.2, equidistant between
holes
No tolerance determined, requirements
per Danish Standard 2075 fine series
|
PART |
TYPE |
DRW. NO. |
|
Clutch hub 1934
|
MC |
7048 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
Steel |
Ø 70
|
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
|
Copper plated |
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
05.18.96 |
111.
[End of translation of page 111]
|
|
|
|

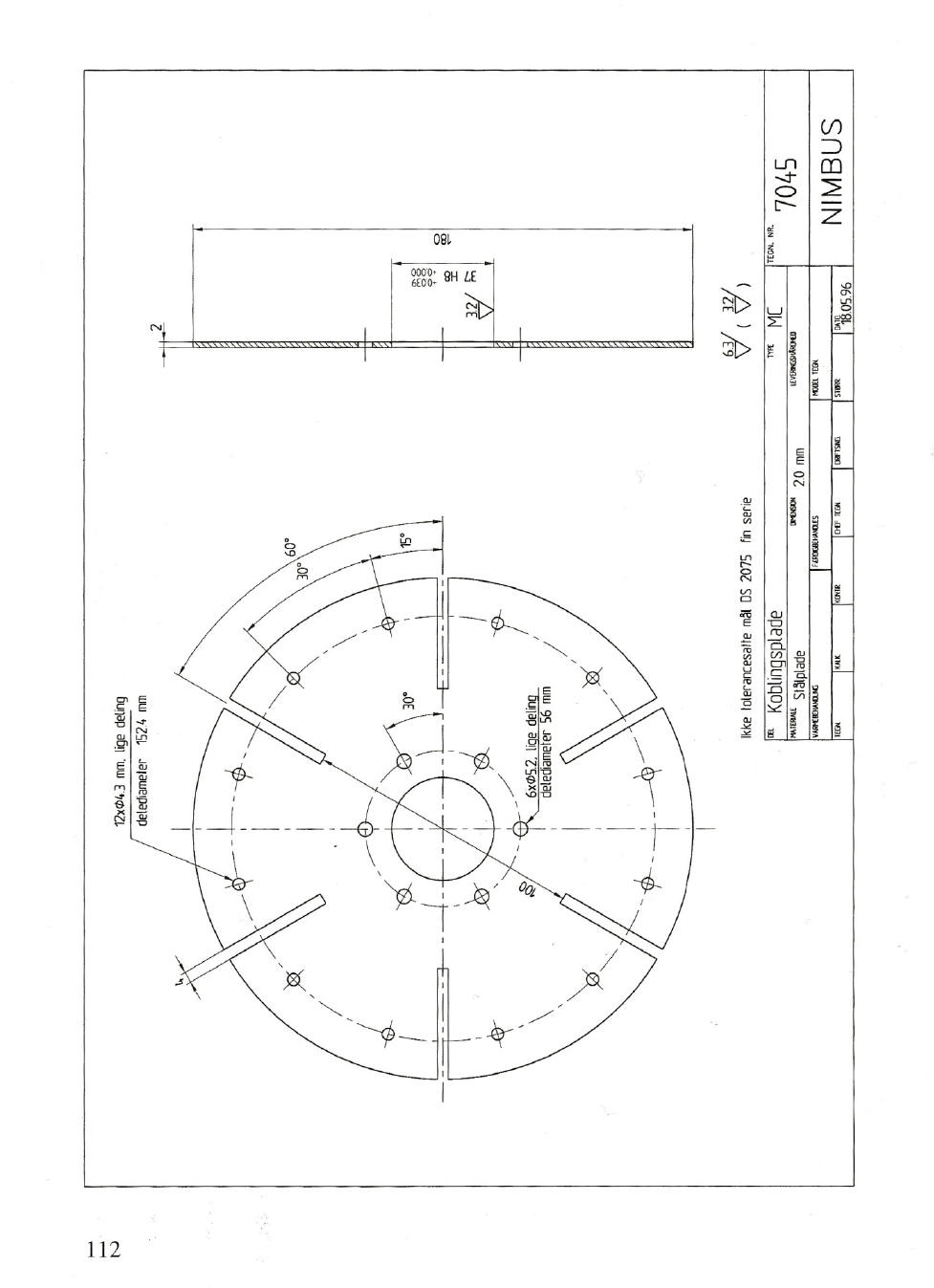

[Translation of page 112]
12 x Ø 4.3mm, equidistant between
holes
Pitch diameter 152.4
mm
No tolerance determined, requirement per
Danish Standard 2075 fine series
|
PART |
TYPE |
DRW. NO. |
|
Clutch plate
|
MC |
7045 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
Steel plate |
20
mm |
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
|
|
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
05.18.96 |
112.
[End of translation of page 112]
|
|
|
|

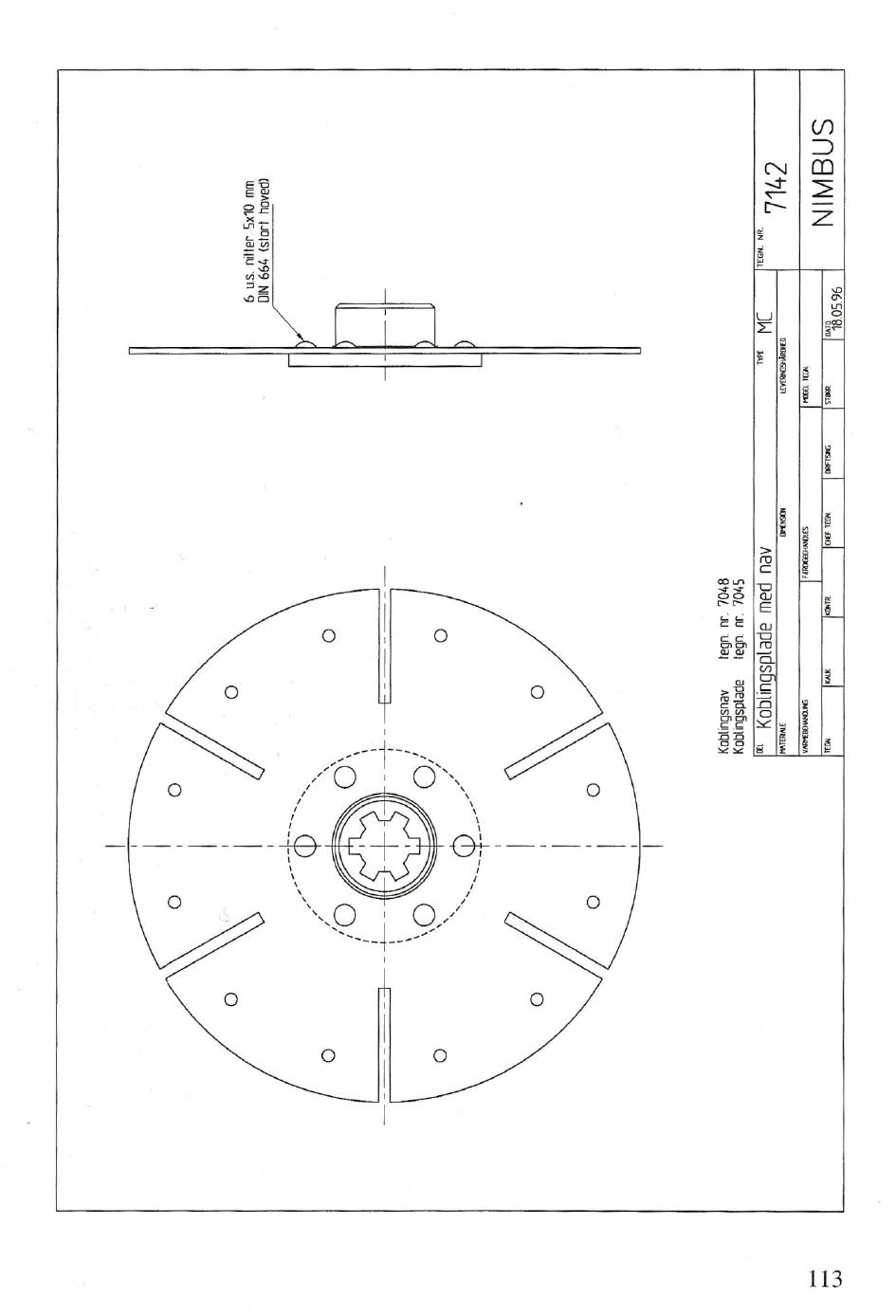

[Translation of page 113]
6 U.S. rivets 5x10 mm
DIN 664 (with
large head)
Clutch hub
DRW No 7048
Clutch plate.
DRW No 7045
|
PART |
TYPE |
DRW. NO. |
|
Clutch plate with
hub |
MC |
7142 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
|
|
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
|
|
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
05.18.96 |
113.
[End of translation of page 113]
|
|
|
|

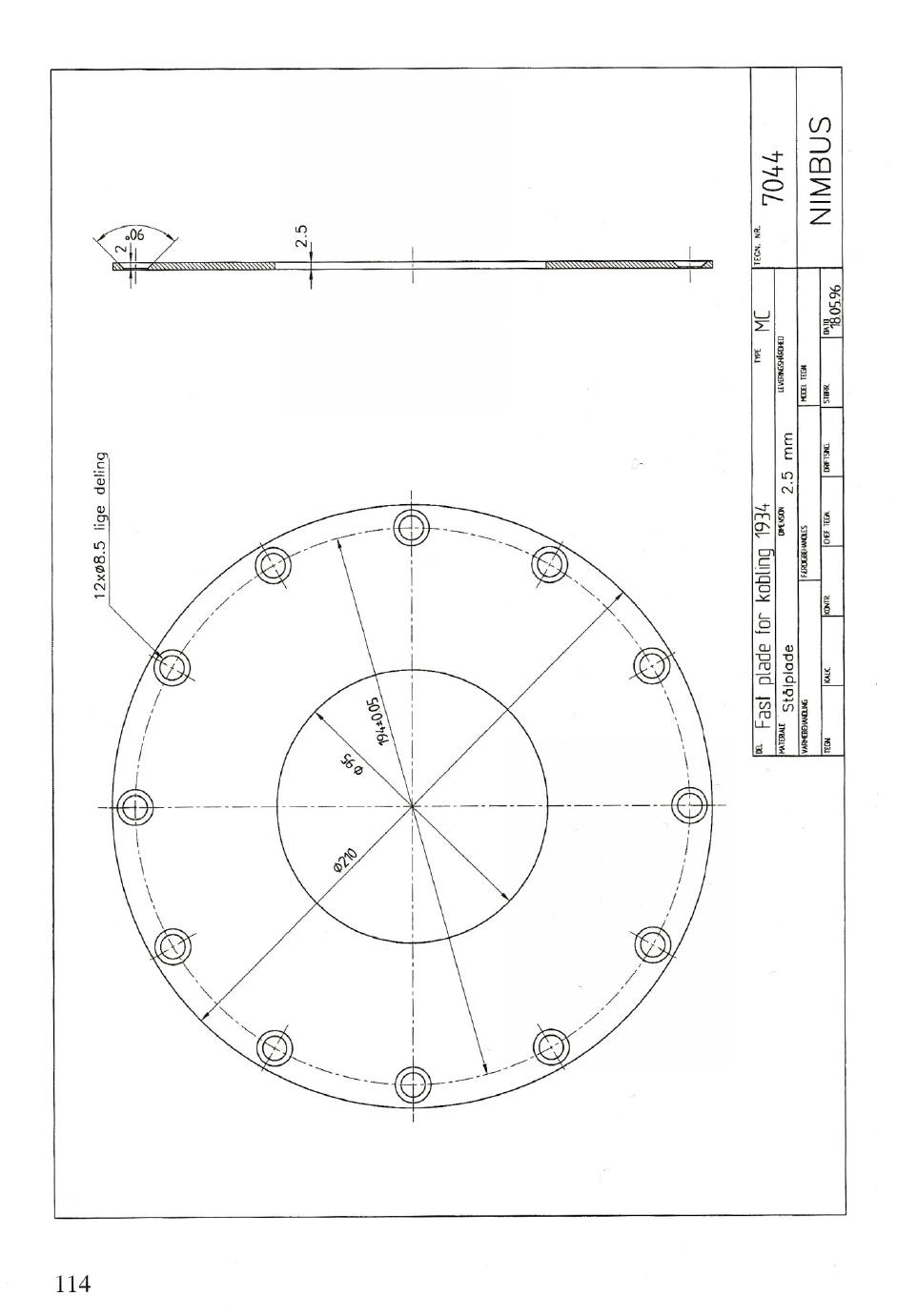

[Translation of page 114]
12xØ 8.5 equidistant
between holes
|
PART |
TYPE |
DRW. NO. |
|
1934
Fixed clutch plate |
MC |
7044 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
Steel plate |
2.5 mm
|
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
|
|
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
05.18.96 |
114.
[End of translation of page 114]
|
|
|
|

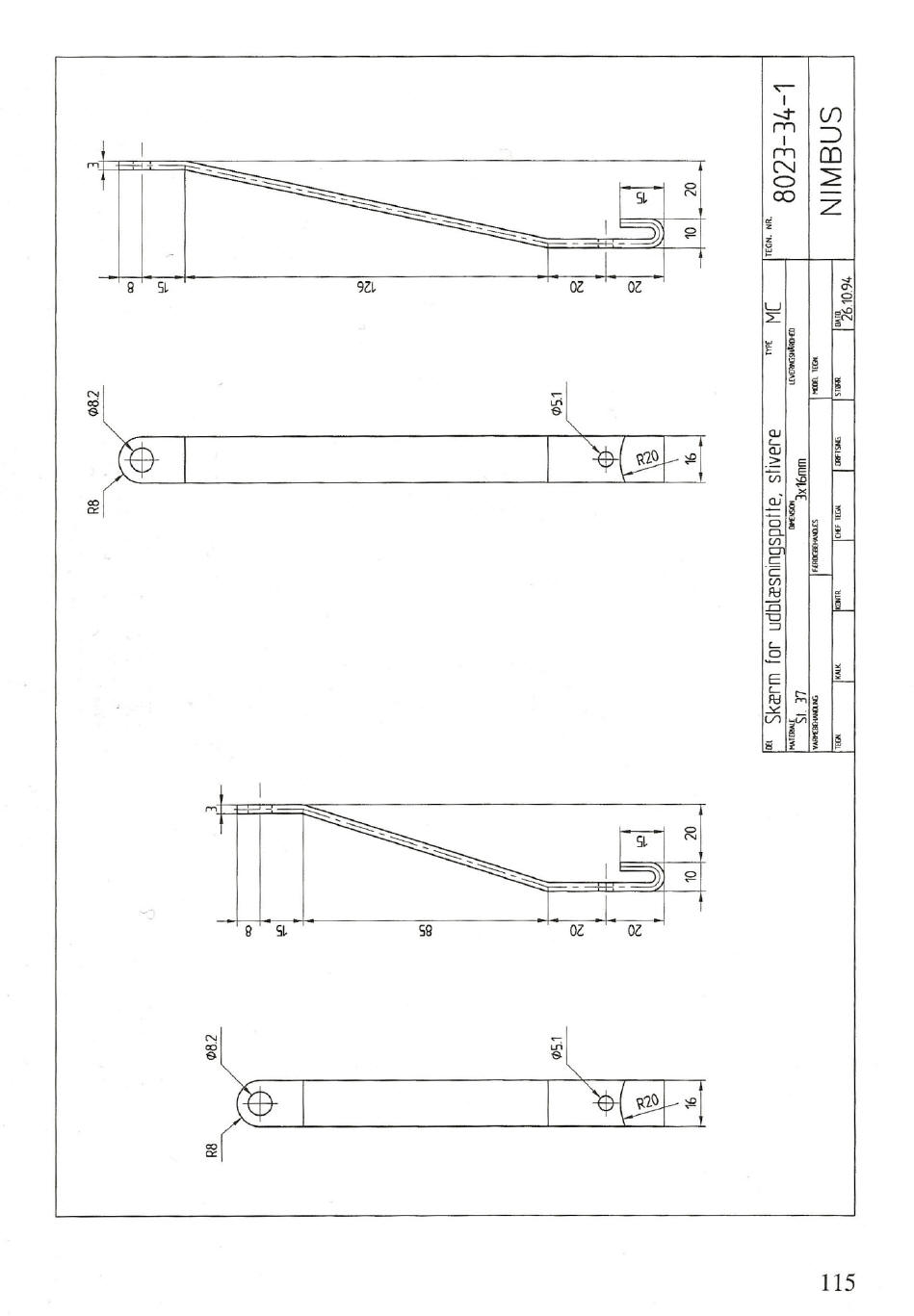

[Translation of page 115]
|
PART |
TYPE |
DRW. NO. |
|
Heat shield for
exhaust, reinforcement strip |
MC |
8023-34-1 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
St. 37 |
3x16 mm
|
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
|
|
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
10.26.94 |
115.
[End of translation of page 115]
|
|
|
|

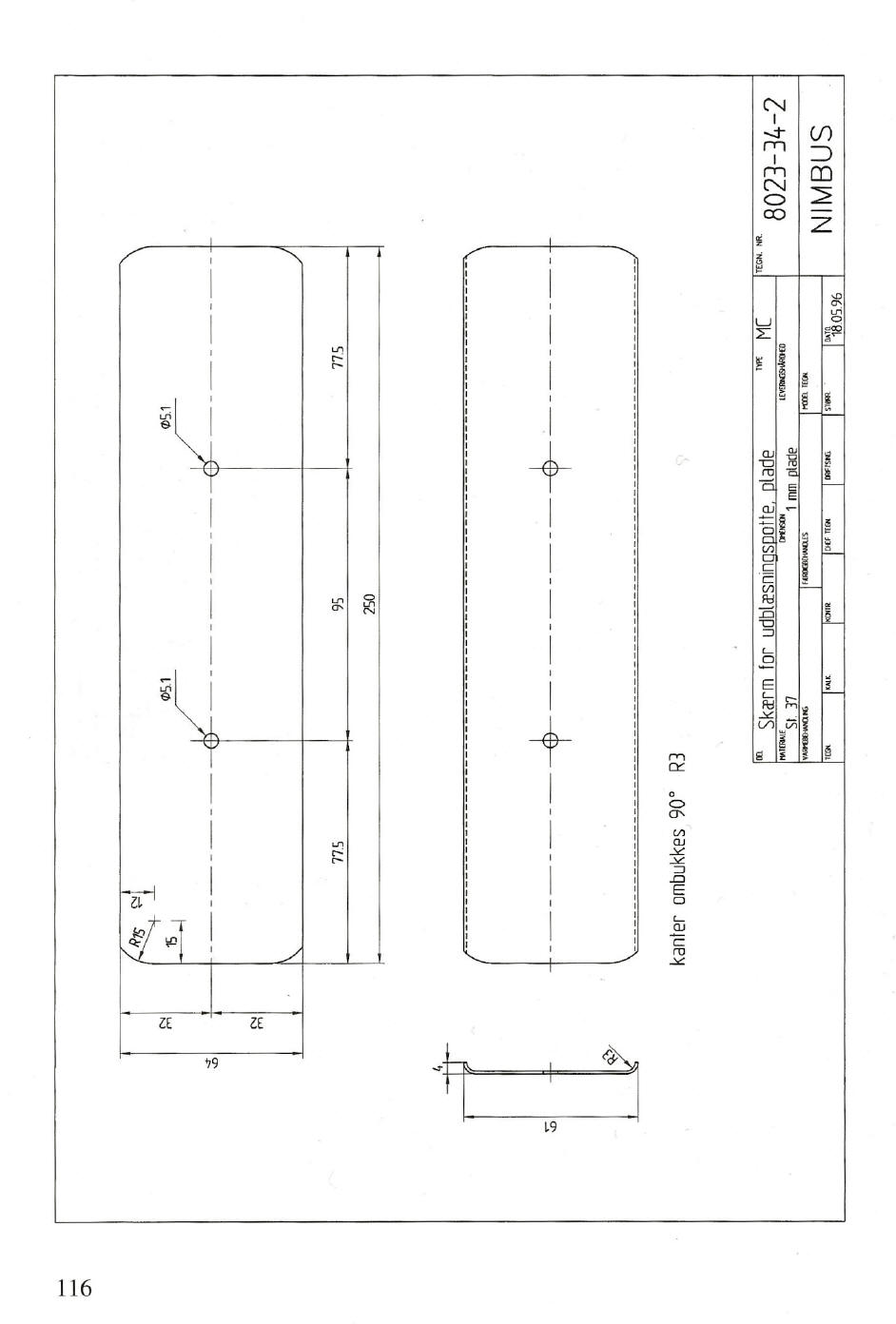

[Translation of page 116]
Edges have to be bent, 90º R=3
|
PART |
TYPE |
DRW. NO. |
|
Heat shield for
exhaust, plate |
MC |
8023-34-2 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
St. 37 |
1 mm sheet
|
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
|
|
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
05.18.96 |
116.
[End of translation of page 116]
|
|
|
|

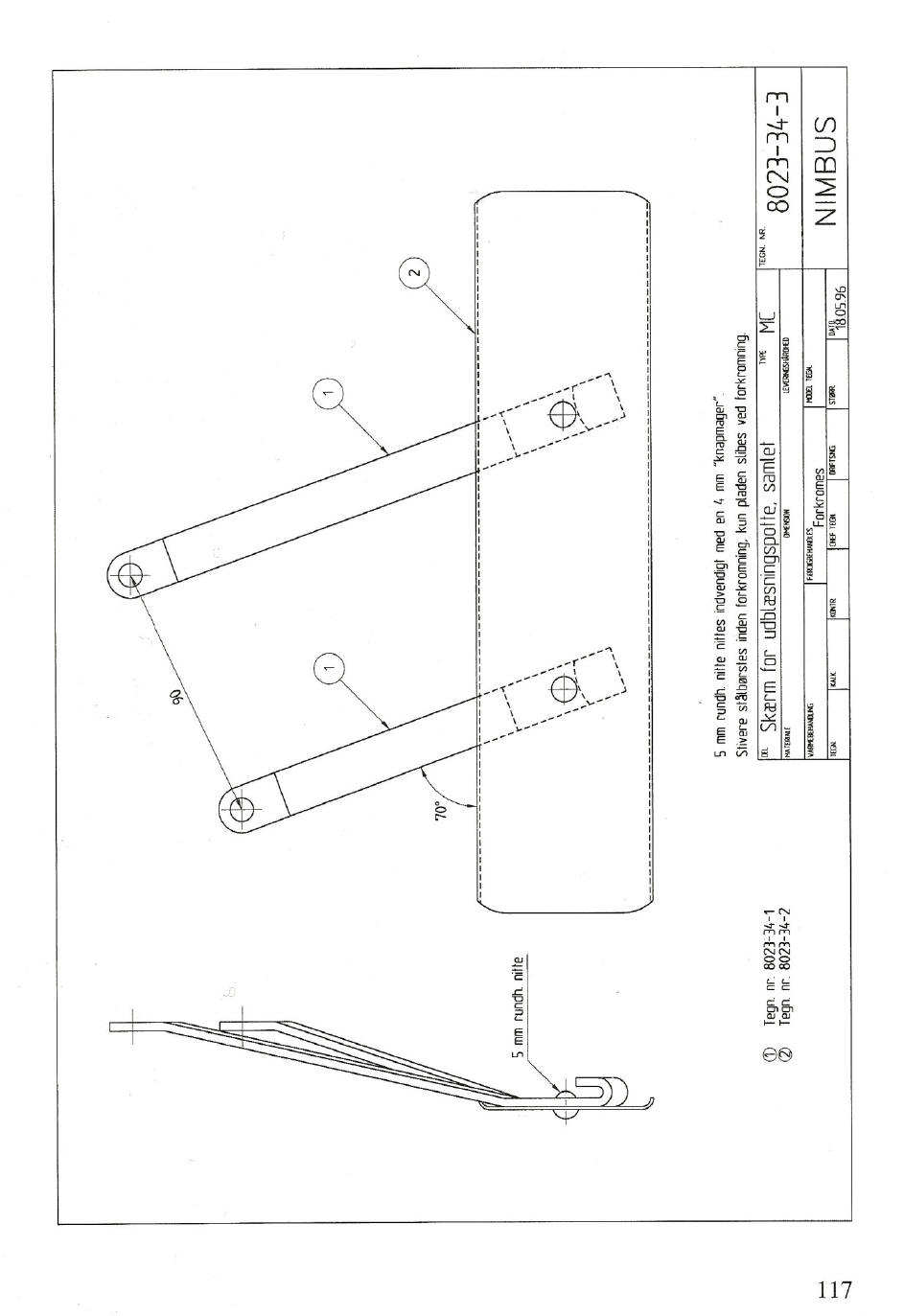

[Translation of page 117]
Rivet with 5 mm spherical head
5 mm rivet with spherical head, riveted
at the inside with a 4 mm rivet set
The reinforcement straps are prepared
with a wire brush before chrome plating, only the plate is polished
before chrome plating.
1: Drw. No 8023-34-1
2: Drw. No 8023-34-2
|
PART |
TYPE |
DRW. NO. |
|
Heat shield for
exhaust, composition |
MC |
8023-34-3 |
|
MATERIAL |
DIMENSIONS |
HARDNESS |
|
|
|
|
|
|
|
HEAT TREATMENT |
FINISHING |
MODEL DRW. |
|
NIMBUS |
|
|
Chrome plated |
|
|
|
DRW |
CALC |
CONTR |
CHEF DR. |
MGMT. SIG. |
DIM. |
DATE |
|
|
|
|
|
|
|
18.05.96 |
117.
[End of translation of page 117]
